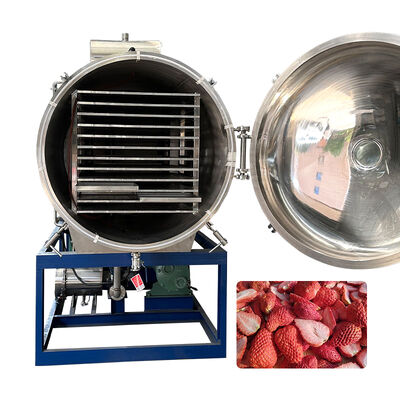

Large Capacity 15 kg/batch Freeze Dryer with Touch Screen and 70 mm Shelf Spacing for Industrial Lyophilization

Large Capacity 15 kg/batch Freeze Dryer with Touch Screen and 70 mm Shelf Spacing for Industrial Lyophilization

Nama merek:	LTPM China
Nomor Model:	LTDG-Seri
MOQ:	1 set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Pasokan:	15 set/bulan

Informasi Detil

Deskripsi Produk

Informasi Detil

Tempat asal:

Cina

Sertifikasi:

Berat:

1200kgs

Nama Barang:

8000 Meter persegi/hari

Daerah Kering:

1,08 meter persegi

Daerah Baki:

1,02 meter persegi

Total Volume Dehidrasi:

15 kg/batang

Jarak Rak:

70mm

Modus Pemanasan:

Mode konduksi

Sistem Operasi:

Layar Sentuh

Kemasan rincian:

Kasus Kayu Standar Ekspor

Menyediakan kemampuan:

15 set/bulan

Menyoroti:

15 kg/batch Freeze Dryer

Touch Screen Lyophilizer

70 mm Shelf Spacing Vacuum Freeze Drying Equipment

Deskripsi Produk

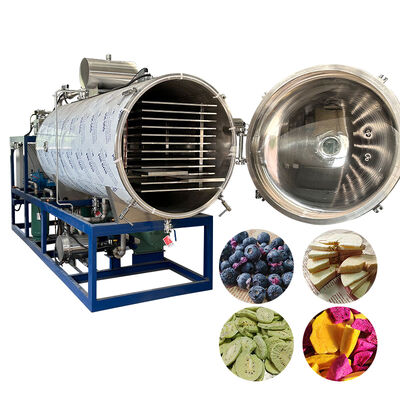

Large Capacity Vacuum Freeze Drying Equipment

Industrial freeze dryer for meat, seafood, and agricultural products with advanced vacuum freeze-drying technology.

Product Overview

This food-grade freeze dryer utilizes advanced vacuum freeze-drying technology to gently remove water from food materials at low temperatures. It effectively preserves the original nutrition, flavor, color, shape, and rehydration properties of fruits, vegetables, meat, seafood, herbs, and ready-to-eat snacks. Constructed with food-safe materials and a sanitary structure, it ensures stable and reliable performance for both small-batch trials and industrial food production.

Key Features

International Branded Core Components: German BITZER compressor, Japanese ULVAC vacuum pump, and components from world-renowned brands including Danish DANFOSS, American Omega, and Swiss REFCO for stable equipment operation.
High-End Process Design: Compliant with CGMP design specifications, with control system meeting FDA and EU standards featuring electronic signature and multiple password protection for pharmaceutical and high-end food industries.
Precision Temperature and Vacuum Control: Shelf heating temperature control at ±0.3°C (PID regulator), ultimate vacuum ≤13.3Pa, with adjustable range of 13.3-200Pa to match various material requirements.
Excellent Freeze-Drying Efficiency: Maximum condensate ice capacity of 2000KG per batch, total shelf area of 110.16㎡, rapid cooling from 30℃ to -40℃ in ≤30 minutes, and vacuum pressure reduction from 105 Pa to 133 Pa in ≤20 minutes.
Industrial Structural Design: Integral horizontal drum-type structure with suspended rail material conveying system, featuring 4 sets of SUS304 trolleys per drying/frozen library and tray capacity of 64 pieces for efficient large-batch processing.

Technical Specifications

Parameter	Specification
Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Machine Details

Drying Chamber/Shelf

Rotate lock design for easy opening (optional automatic hydraulic lock). PLC controlled shelf heating and cooling with temperature control accuracy ≤+1°C. Shelf heating methods: constant heating/stage heating.

Cold Trap

Constructed from SUS304/316L stainless steel with argon arc welding and one-step forming to ensure no leakage and clean operation.

Visual Viewing Window

Stainless steel construction providing safe, hygienic, and durable visual access to the process.

Control System

PLC control with constant heating/stage heating options. Automatic alarm function. Computer connectivity for remote monitoring. Automatic recording and storage of freeze-dried data and curves with data saving capability.

Vacuum System

Multi-stage roots vacuum pump design for improved pumping rate with final vacuum ≤1Pa.

Refrigeration System

High quality compressor units with accurate refrigeration capacity calculation. Piston/screw compressor options available. System includes multiple protection functions including high/low voltage protection and oil pressure differential protection for operational stability.

Tag:

Stable Durable Industrial Grade 15 kg/batch Vacuum Freeze Drying Machine with 70 mm Shelf Spacing and Touch Screen Operation
