Mesin Pengisian Dan Penyegelan Tabung Otomatis

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Nama merek:	LTPM China
Nomor Model:	Seri LTRG
MOQ:	1set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t
Kemampuan Penyediaan:	15Set/Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

Nilai otomatis:

Otomatis

Voltase:

380(220)V/50Hz

Bahan:

SUS 304/316L

Kapasitas produksi:

25-40 buah / mnt

Motor:

1.5kw

Tinggi tabung:

50-250mm

Berat:

300kg

dimensi (l*w*h):

1500*700*1800mm

Kemasan rincian:

Ekspor Kasing Kayu Standar

Menyediakan kemampuan:

15Set/Bulan

Menyoroti:

automatic tube filling machine for cosmetics

plastic tube sealing machine for creams

automatic ointment tube filling machine

Deskripsi Produk

Introduction

This product uses a programmable logic controller (PLC) to program the entire machine, fully automating all processes, from filling and sealing liquids to high-viscosity fluids (pastes) to batch number coding (including the production date). It is ideal for filling and sealing aluminum, plastic, and composite tubes in the cosmetics, pharmaceutical, food, and adhesive industries, and complies with GMP regulations.

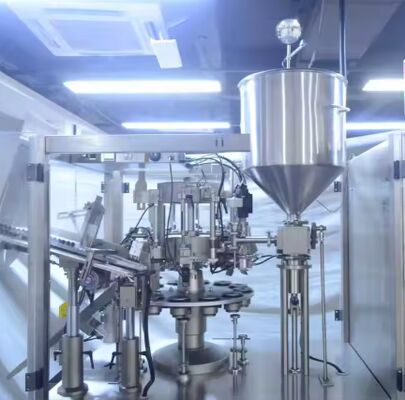

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 0

Main features & functions

Key Features:

1) A high-quality LCD display and programmable controller with push-button operation screen provides comprehensive visibility into the machine's operating status, including stepless speed regulation, parameter settings, production statistics, air pressure indication, and fault display, ensuring simple and user-friendly operation.

2) The entire process, including tube feeding, calibration, inert temperature gauge charging (optional), filling, sealing, coding, and finished product export, is fully automated.

3) A high-precision calibration system minimizes color variations between the tube and the color scale.

4) External adjustment points and digital position display ensure quick and accurate adjustments (suitable for production of multiple specifications and varieties).

5) Integrated mechanical, optical, electrical, and pneumatic systems ensure no filling without tubes, automatic display (alarm) for incomplete tube feeding, low air pressure, and automatic shutdown when the protective door is opened.

6) The equipment guarantees a qualified product rate of over 99.5%, unless the scrap rate is due to problems with the customer's tube material.

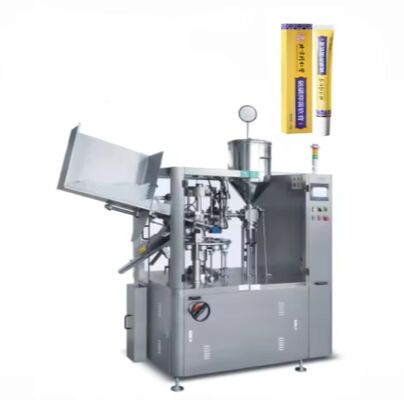

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 1

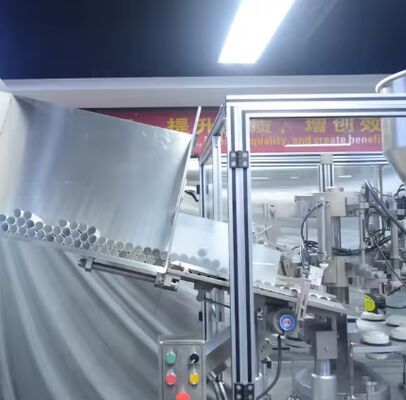

Hose hopper

Used to collect and store hoses waiting for use.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 2

Hose feeder

The robot removes the hose and fixes it to the base.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 3

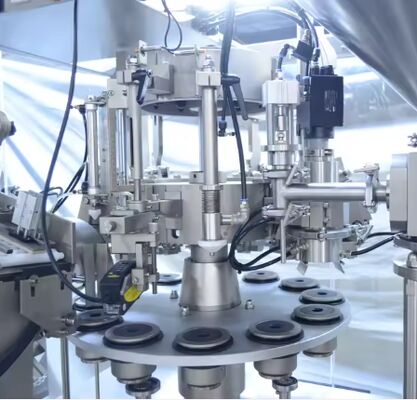

Filling Part

The filling head quantitatively extracts the emulsion and fills it into the hose.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 4

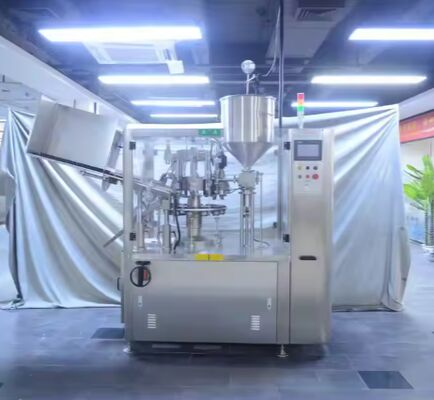

Siemens touch screen

Adopt Siemens touch screen, easy to operate, multiple languages available, stable quality. Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 5

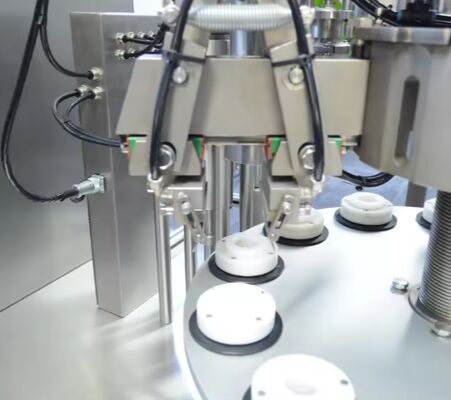

Hose sealing part

Seal the bottom of the filled hose to achieve a beautiful effect and prevent leakage.
